K5-B-1E111BRC1 snap-action round 2 pins SPST IP65 waterproof rocker switch

Series:K5-B

Description:

Type:                                 K5-B-1E111BRC1
Construction category:  D
Operation method:         Rocker Action
Configuration:                 Single-Pole Single-Through (SPST)
Terminal form:                 #187 quick-connect Terminal
Mounting:                         Snap-In
Protection:                        IP65

Contact Now

  • Applications
  • Technical parameters
  • Remarks

Home / Household Appliances
Electric kettle, Robot cleaner, Dust catcher, Vacuum cleaner, Coffee maker, Running machine etc.
Electronic Equipment
Toys, Power tools, Car control panel etc.
Medical Equipment
Communication Equipment
Automation Equipment
Automotive Electronics
Instrumentation

1.DETAIL SPECIFICATIONS:
Type:K5-B-1E111BRC1
Construction category:D
Operation method:Rocker Action
Configuration:Single-Pole Single-Through (SPST)
Terminal form:#187 quick-connect Terminal
Mounting:Snap-In
Protection:IP65
1.1OPERATING CHARACTERISTICS

Characteristics

Units

Standards

Note

Actuating Force

N

4±7 Max

Original 4±7

Contact Force

N

0.4 Min

Original 0.4 Min

Electrical Clearance

mm

3 Min

Original 3 Min

Note:
Actuating Force:The force required to move the actuator from the free to the operation position
1.2  GENERAL CHARACTERISTICS
1.2.1Application This specification is applied to KAN Rocker Switch used for electronic equipment.
1.2.2 Operating temperature range -25℃ to +105℃
1.2.3Test conditions Unless otherwise specified. The atmospheric conditions for making measurements and tests are as follows
Ambient temperature:15~35℃
Relative humidity:45~85%
Air pressure:86~106kPa (860~1060 mbar)
Should any doubt arise in judgment. tests shall be conducted at the following conditions.
Ambient temperature:20±2℃
Relative humidity:60~70%
Air pressure:86~106kPa (860~1060 mbar)
1.3 Appearance construction and dimensions
1.3.1 AppearanceSwitch shall have good finishing, and no rust crack or plating failures.
1.3.2 Construction and dimensions Refer to individual product drawing.
1.4. Electrical specifications

NO.

Items

Test conditions

Criteria

1.4.1

Contact

resistance

Shall be measured at 12A

24VDC by voltage drop

method after some

operations without load.

Applied position: Between

terminal and terminal

50mΩ MAX

1.4.2

Insulation

resistance

Test voltage:500VDC,

measured after 1 min ±5s

Applied position: 1)Between

terminal and terminal

2)Between terminal and

ground

100MΩ MIN

1.4.3

Voltage

proof

Following test voltages shall

be applied for 1 min.

(Cut-off  current:0.5mA)

1)Between terminal and

terminal :2000VAC/min

(50~60Hz)

2)Between terminal and

ground: 2500VAC/min (50~60Hz)

No dielectric

breakdown

shall occur

1.5. ENVIRONMENT RESISTANCE

NO.

Item

Test conditions

Criteria

1.5.1

Cold

After testing at -25±2℃ for 96 h, the

 switch shall be allowed to stand under

normal room temperature and

humidity condition for 1h, and then

measurement shall be made within

1 h. water drops shall be removed.

Contact

resistance

(item 4.1):

50mΩ MAX

Insulation

resistance

(item 4.2):

100MΩ MIN

Voltage proof:

 (item 4.3)

No dielectric

breakdown

shall occur.

Operating

characteristic

(item 5.1):

Operating

characteristic

variety Within

±10% of specified

value .

No abnormalities

shall be recognized

in appearance and

construction.

1.5.2

Dry heat

After testing at 105±2℃ for 96 h,

the switch shall be allowed to stand

under normal room temperature

and humidity condition for 1h, and

then measurement shall be made

within 1 h.

1.5.3

Damp heat

After testing at 40±2℃ and

90-95%RH for 96 h, the switch shall be

allowed to stand under normal

room temperature and humidity

condition for 1h, and then

measurement shall be made within 1 h.

water drops shall be removed.

1.5.4

Change of

temperature

After 20 cycles of following

 conditions the switch shall be allowed to

stand under normal room

temperature and humidity condition for 1h,

and then measurement shall

be made within 1 h. water drops shall

be removed.

1.5.5

Salt mist

Switch shall be checked after following lest.

1) Temperature: 35±2℃

2) Salt solution: 5±1% (solids by mass)

3) Duration: 24±1h

After test, salt deposit shall be

removed in running water

No remarkable

corrosion shall

be recognized

in metal part

1.6. WELDING CHARACTERISTICS



1.6.1



Solder

ability

Switch test under such conditions and

inspect after.

1)Variable temperature range :

235±5℃;

2)Dip time:3±0.5s;



The area of

dip tin should

capture the

95%

impregnated

area



1.6.2



Resistance

to soldering

heat



The switch will be inspect under such

conditions below

Temperature and impregnated time

Trial measure

temperature

(℃)

Time

(s)

Slot welding method

260±5

5±1

Soldering method

350±5

3±0.5





All of the

appearance,

motor functions,

electrical

properties

are no

abnormal.

1.7. ENDURANCE

NO.

Item

Test condition

Criteria

1.7.1

Endurance

(According to

 UL61058)

20A 125VAC

Switch shall be operated according to

 following sequence

(Test1~Test2)



Voltage

Current

Power

 factor

Operation

 rate

Number of

 operation

Test1

125V

18A

0.75-0.8

6-10

cycles/min

50cycles

Test2

125V

17A

0.75-0.8

6-10

cycles/min

6000

cycles

Voltage proof(Cut-off current:0.5mA)

1GPA 125/250VAC ;

Switch shall be operated 6,000 cycles at

15-20 cycles/min.

Test voltages shall be applied for 1 min

Insulation

resistance

(item 4.2):

50MΩ MIN

Voltage proof:

Terminal and

ground:1000VAC

No dielectric

breakdown

shall occur.

Operating

characteristic

(item 5.1):

Operating

characteristic

variety

Within ±20%

of specified value .

6000 cycles

temperature

rise:30℃ MAX;

10,000 cycles

temperature

rise:55℃ MAX;



No abnormalities

shall be

recognized in

appearance and

construction

1.7.2

Endurance

(According

to EN61058-1

/IEC61058-1)

16 (8) A 250VAC

Switch shall be operated 10,000 cycles at

15~20 cycles/min

Voltage proof(Cut-off current:0.5mA)

Test voltages shall be applied for 1 min.

Insulation

resistance

(item 4.2):

100MΩ MIN

Voltage proof:

Terminal and

terminal:750VAC

Terminal and

ground:1500VAC

No dielectric

breakdown

shall occur.

Operating

characteristic

(item 5.1):

Operating

characteristic

variety

Within ±20%

of specified

value .

Temperature

rise:55℃ MAX

No abnormalities

 shall be

recognized in

appearance and

construction

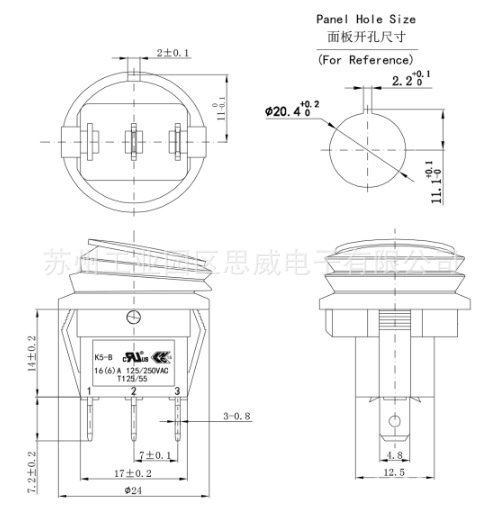

2. DRAWING & DIMENSION:

undefined

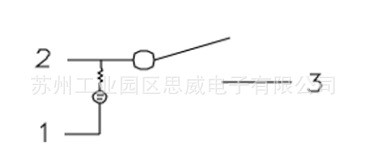

3. CIRCUIT DIAGRAM:

undefined

4.1

Packing material:

Plastic box /
Double-layers paper carton

4.2

Packing number:

100 pieces per bag
10 bags per inner carton
2 inner cartons per shipping carton

Each shipping carton 2000 pieces

4.3

Weight:

 Gross Weight:  14.5kg

 Net Weight:   12.52kg

4.4

Size:

31 x26 x27 CM /0.022CBM

SAFETY APPROVAL & RATING:

Approved Rating

Mark

Reference No.



UL&CUL





VDE





CQC





NEMKO





SEMKO





FIMKO





DEMKO





CE





TUV





ENEC





EK





CB




 PARTS LIST:

ITEM

 NO.

NAME

MATERIAL

1

1

HOUSE

NYLON

2

1

SHAFT

NYLON

3

1

PLUNGER

NYLON

4

1

SOLDERING TERMINAL

BRASS STRIP

5

1

MOVING TERMINAL

BRONZE STRIP  Gold-plating

6

1

SUPPORT

COPPER STRIP

7

1

COMPRESSED SPRING

STAINLESS STEEL WIRE

8

1

TOP COLUMN

BRASS STRIP

9

1

CONTACT

AgCdO / COPPER
